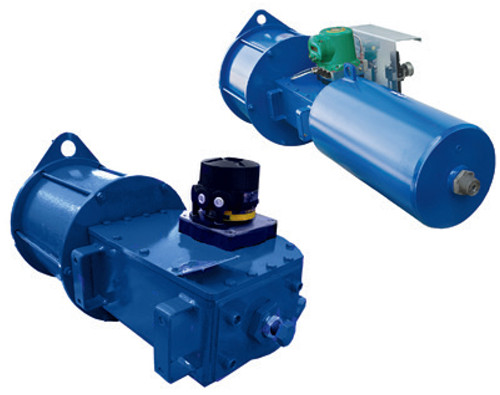

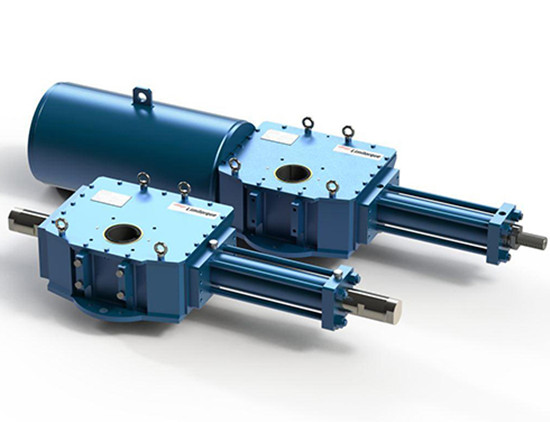

Angular Stroke Hydraulic Actuator

BOVE IH900 single-acting and double-acting angular stroke high pressure hydraulic actuators have advanced operating, control, design and maintenance features, and are widely used in shutoff and regulating valves in heavy industry, chemical and petrochemical fields.
Technical Features:

1. Fully enclosed and weatherproof carbon steel shell is sturdy and reliable.

2. The hard chromium plating on alloy steel has high strength and corrosion resistance, and minimizes friction.

3. Asymmetric and symmetric fork structures are available to suit different valve characteristics.

4. Fully enclosed spring cylinder design ensures personal safety and easy assembly.

5. Modular design, the direction of spring action can be modified, the spring close is changed to spring open, and vice versa.

Basic Description:

1. Design Pressure: up to 30 MPa

2. Oil Source Medium: hydraulic oil

3. Output Torque: Double acting output torque can reach 650,000 Nm, single acting spring output torque can reach 330,000Nm

4. Protection Level: IP67

5. Temperature Range: -40 ℃ ~ 150 ℃
