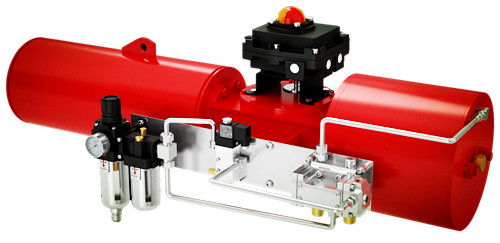

Scotch Yoke Pneumatic Actuator

BOVE IX model adopts a scotch yoke pneumatic actuator, which is sturdy and durable, and has high reliability. It is suitable for ball valves, butterfly valves and plug valves suitable for on-off or adjustable angular stroke.
Technical Features:

1. Fully enclosed, all-weather protected carbon steel shell is sturdy and reliable.

2. The hard chrome plating on the inner surface of the cylinder has high strength corrosion resistance and reduces friction.

3. The forming range can be adjusted by the limit bolt.

4. NAMUR standard size at the top of the output shaft, easy to install electrical accessories

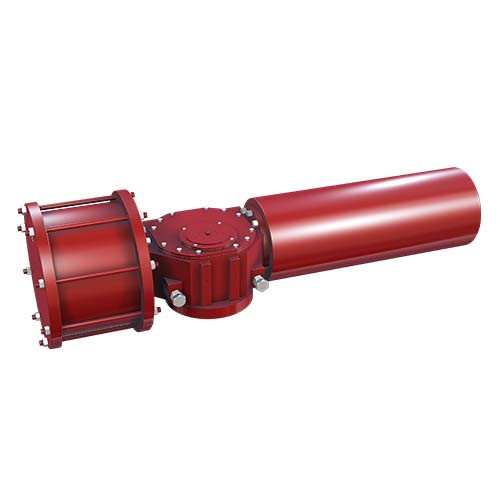

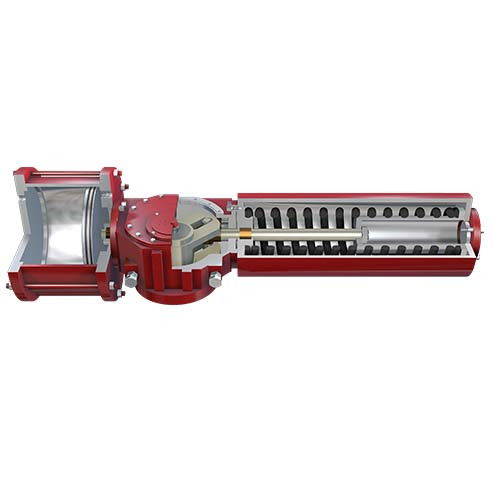

5. Can provide double-acting and spring return single-acting two structures suitable for different needs.

6. Can be easily converted from single-acting to single-acting (or vice versa) in the field without special tools.

Basic Description:

1. Double Acting Torque Output Range: 784 ~ 9566 Nm

2. Single Acting Torque Output Range: 275 ~ 6456 Nm

3. Operating Medium: compressed air (dry or lubricated)

4. Air Supply Pressure: 10 Bar max

5. Temperature Range: -40 ℃ ~ 150 ℃
