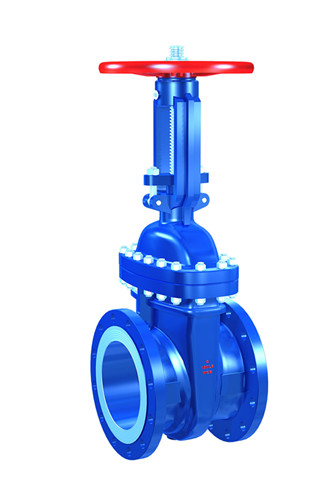

Casting Steel Wedge Gate Valve

BOVE Casting Steel Wedge Gate Valve is a commonly used on-off valve. It is widely used in applications with bi-directions. It is normally open or normally closed. The gate adopts a wedge design to effectively achieve mechanical sealing. The structural design is simple and the maintenance cost is low. And can provide a multiple of product options.

Technical Features:

1. The pole support is connected.

2. Wedge-shaped elastic gate

3. Multiple design standards-DIN, API, ANSI

4. A multiple of material choices-carbon steel, alloy steel, stainless steel, duplex stainless steel, corrosion-resistant alloy.

Basic Description:

1. Pressure Lever: Class 150, Class 300, Class 600, Class 900, Class 1500, Class 2500,

2. Nominal Diameter: 1.5 "～ 48" (40mm ～ 1200mm)

3. Face to Face: ASME B 16.10

4. End Connection: ASME B16.5 (flange), ASME B16.47 (flange), ASME B16.25 (butt welding),

5. Pressure Test: API 598, API600

6. Fire Safety Test: API 6FA

7. Material Application: NACE MR 0175

8. Temperature Range: -46 ℃ ~ 345 ℃
