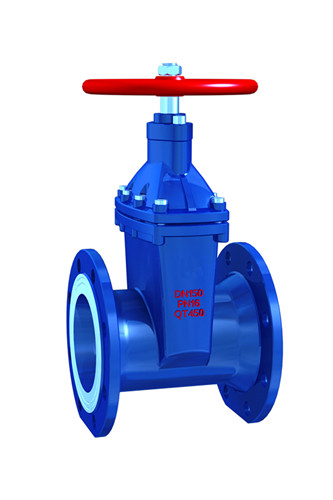

Resilient Seated Gate Valve

Resilient Seated Gate-Valve

Product description:
INQUIRY EMAIL

BOVE Resilient Seated Gate Valve is produced by the use of an advanced overall coating process to produce deformation compensation to achieve a good sealing effect, and completely addresses the general gate valve's poor sealing, water leakage, gas leakage and rust. Resilient seated gate valve can be widely used in water system, natural gas, construction, and other fluid pipeline systems.
Technical Features:

1. The valve core adopts overall vulcanized rubber, and the advanced linear seal design ensures reliable sealing and low torque. .
2. The valve body is made of ductile iron, light weight and easy installation.
3. The inner cavity is coated with non-toxic epoxy resin to prevent corrosion and rust.
4. The stem seal is designed independently, and the seal ring can be replaced under pressure.
Basic Description:
1. Pressure Level: Class 125, Class 150, PN10, PN16,
2. Nominal Diameter: 1 1/2 "～ 16" (40mm ～ 400mm)
3. Face to Face: EN558-1, ASME B16.10, AS2638
4. End Connection: EN1092-2, ASME B16.5, AS4088
5. Design Standards: BS5163-2004, EN1171, EN1074,
6. Temperature Range: 0 ℃ ~ 80 ℃
